Feature| Input Data (DC) | |
| Commonly used module power | 400~670W |
| Maximum input voltage | Min.16, Typ.42, Max.60V |
| Start-up voltage | Min.18, Typ.19, Max.20V |
| MPPT voltage range | Min.16, Typ.42, Max.60V |
| Maximum input current | 2 x 17A |
| Maximum input short circuit current |
2 x 22A |
| Number of input | 2 |
| Number of MPPT | 2 |
| Output Data (AC) | |
| Rated output power | 1000VA |
| Output current range | 0~4.6A |
| Output voltage | Min.183V, Typ. 230V, Max. 264V |
| AC frequency range | 47.5~51Hz |
| Total harmonic distortion | Typ. < 3%, Max. < 5% |
| Power factor (adjustable) | > 0.99 default 0.9 leading…0.9 lagging |
| Efficiency | |
| Peak efficiency | 96.6% |
| MPPT efficiency | 99.8% |
| Environmental and Mechanical Characteristics | |
| Operation temperature | -40 to +65℃ |
| Ingress protection | IP67 |
| Cooling | Natural convection |

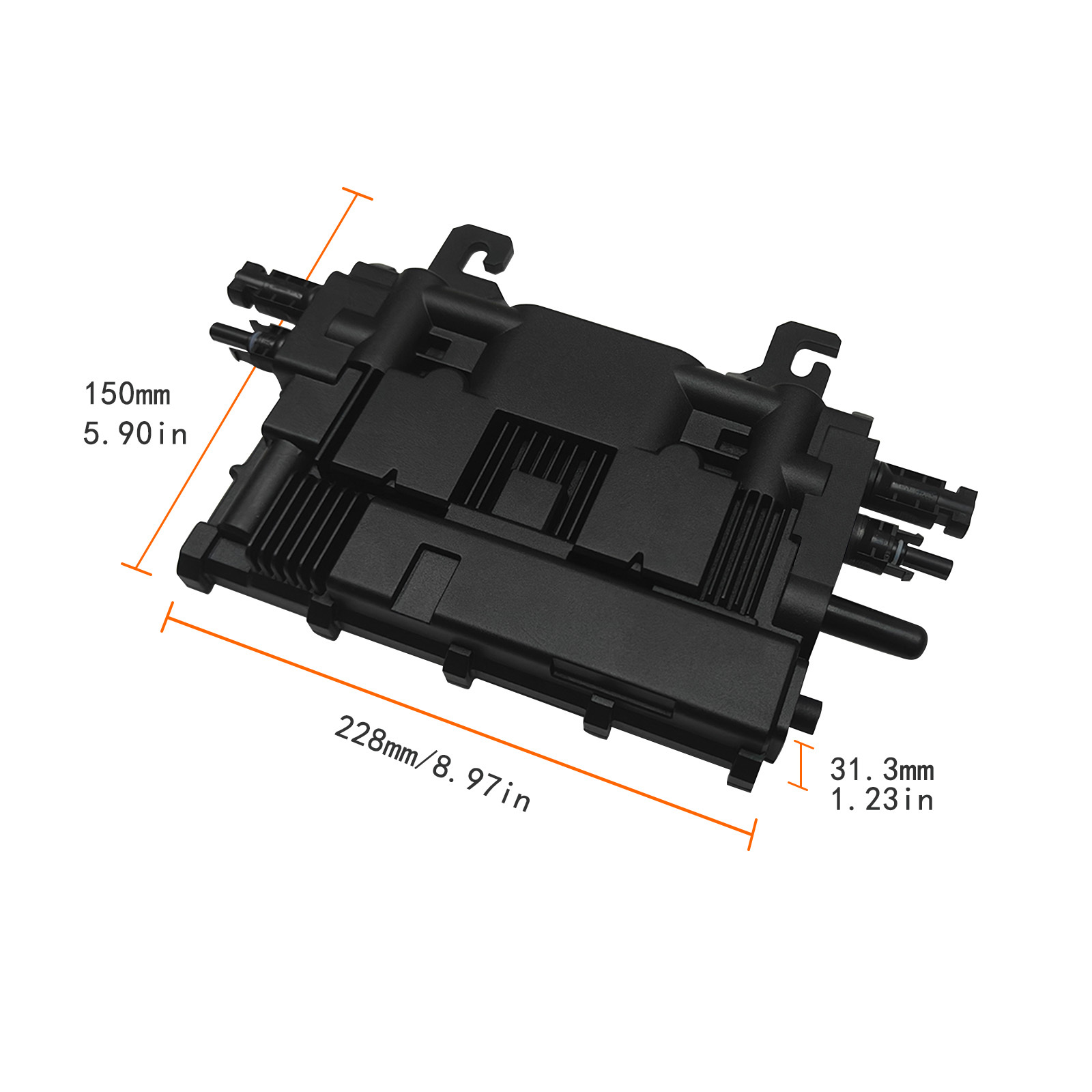

| Nominal Dimensions | 228 × 150 ×31.3mm |
| Nominal weight | 2.4kg |
| Features | |
| Communication | Sub-1G |
| Compliance | IEC/EN 62109-1/-2, EN 50549, VDE-AR-N 4105-2018, NB/T 32004: 2018 |
| Electromagnetic compatibility | IEC/EN 61000-3-2/-3, IEC/EN 61000-6-1/-2/-3/-4 |
