AC Coupled Solar System with 22.56kW Solar Panel 80kW Deye Inverter 56kWh Lithium Battery Solar Energy Storage System for Villas
This AC Coupled Solar Energy Storage System is specifically designed for villas, offering a high-performance and safe energy solution. The system integrates 22.56kW of Trina Solar 705W Bifacial modules with a robust 80kW Deye three-phase hybrid inverter and a high-voltage 56.32kWh Lithium Battery.

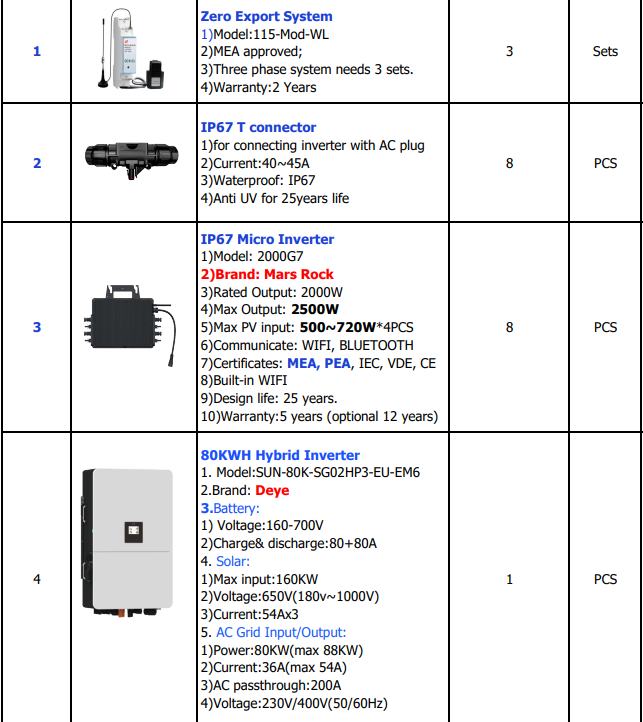

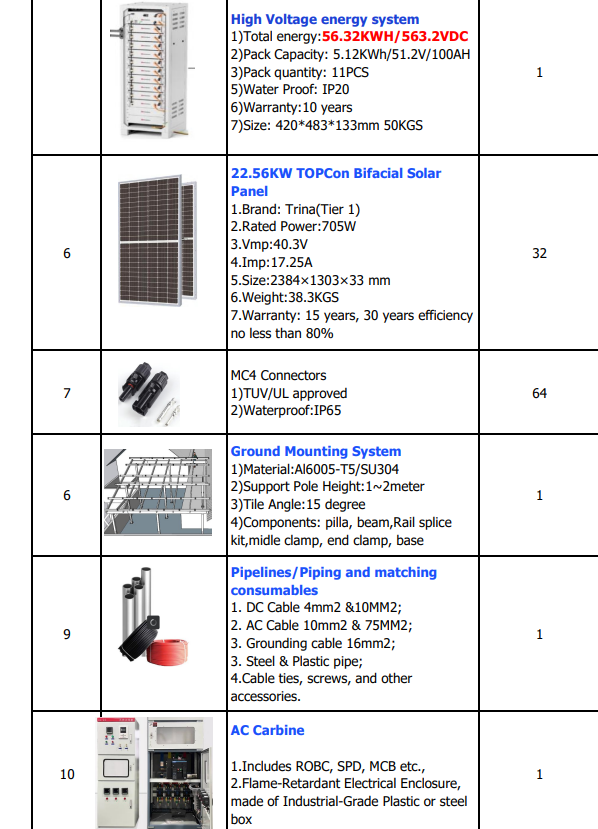

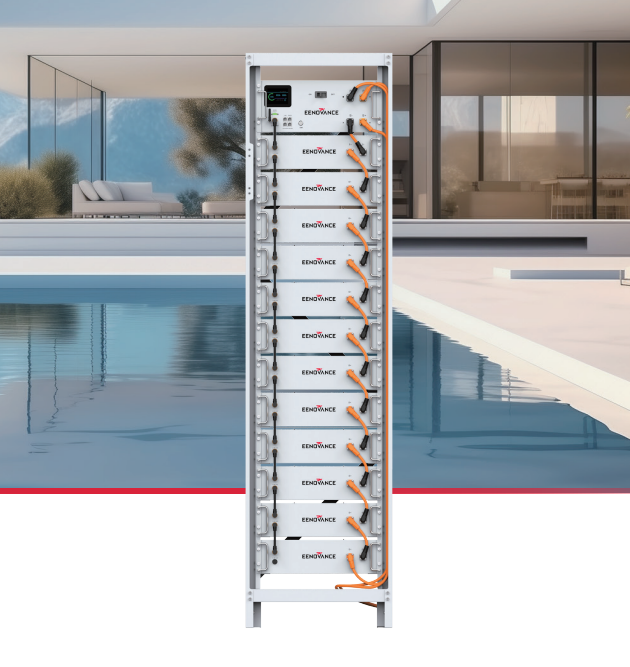

Core Configuration PV Modules Utilizes Trina Solar 705W Bifacial modules featuring high conversion efficiency and excellent low light performance backed by a 30 year linear power warranty Hybrid Inverter Equipped with a Deye 80kW three phase hybrid inverter supporting both grid tied and off grid modes It boasts a 166 percent power margin easily handling peak loads of 30kW Battery Storage Features a High Voltage 563.2VDC Lithium Battery system with a capacity of 56.32kWh integrated with an intelligent BMS It supports modular expansion and offers 5 to 8 percent higher efficiency compared to traditional low voltage systems
Technical Advantages AC Coupled Architecture: Utilizes microinverters (Mars Rock 2000G7) on the PV side, eliminating high-voltage DC series risks on the DC side. The energy storage side uses a high-voltage hybrid inverter, ensuring independent, safe, and stable system operation. Smart Energy Scheduling: Supports peak shaving and valley filling to avoid high electricity tariffs (compliant with Thai PEA/MEA standards). Automatically switches between grid and battery power to maximize self-consumption. Comprehensive Protection: Features a Zero Export function, IP65-rated waterproof DC connectors, and an AC distribution box including SPD/MCB, complying with international electrical and Thai local certification standards.
